Jewelry Holder

This jewelry holder was made with coldrolled steel plates that was lasercut. The metal was also perforated to allow ease of bending.

1. Need

I had space on the pegboard next to my mirror, and I needed somewhere to store jewelry.

2. Inspiration and Iterations

Idea 1: Pros:

• looks cool Cons:
• very sharp, bad idea w metals
• not v convenient, limited space and easy to crowd Idea 2: Top two squared are where the trays go. Bottom two is where a bar would go, where earrings could be hung on. Pros:
• Easy to manufacture (lasercut)
• Space for trays made by bending and hangers on the bottom two bars. Cons:
• Looks ugly
• The two points holding the trays can fail easily

So I ended up going with the simpler second idea and added flare by adding a pointy frame. Important edits to be made in the next iterations are the following:

• More points of contact for bent tray and rest of holder
• Make sleeker, less corners, more rounded bits

3. CAD and Manufacturing

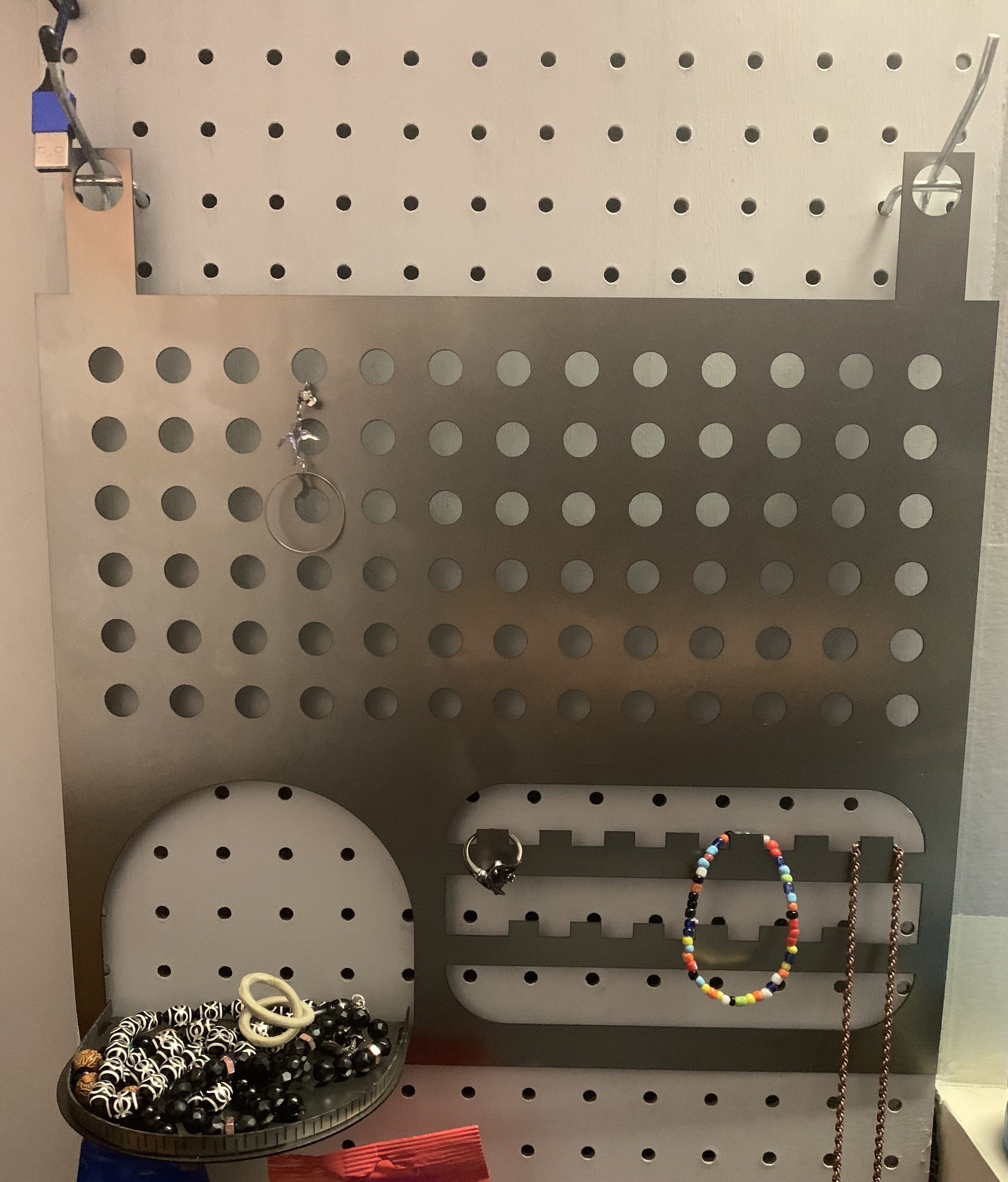

The holder was designed on Rhino, using basic shapes and rectangular perferations where bends are. Iteration 1 in use: Works well, but looks boring. Adding the frame in the next iterations. Making it more round at top two holes where holder is hung to pegboard.

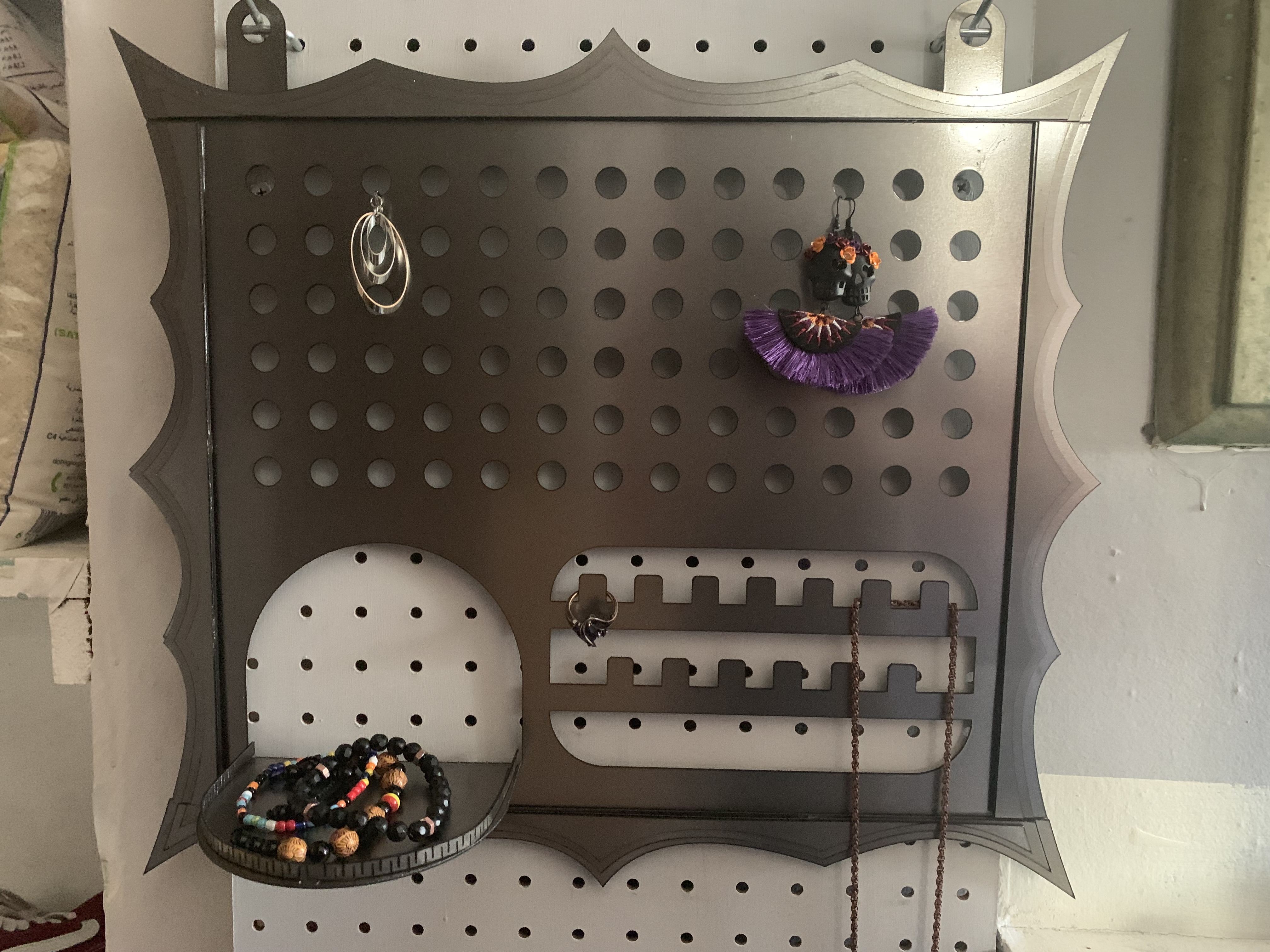

4. Final Result

In use:
